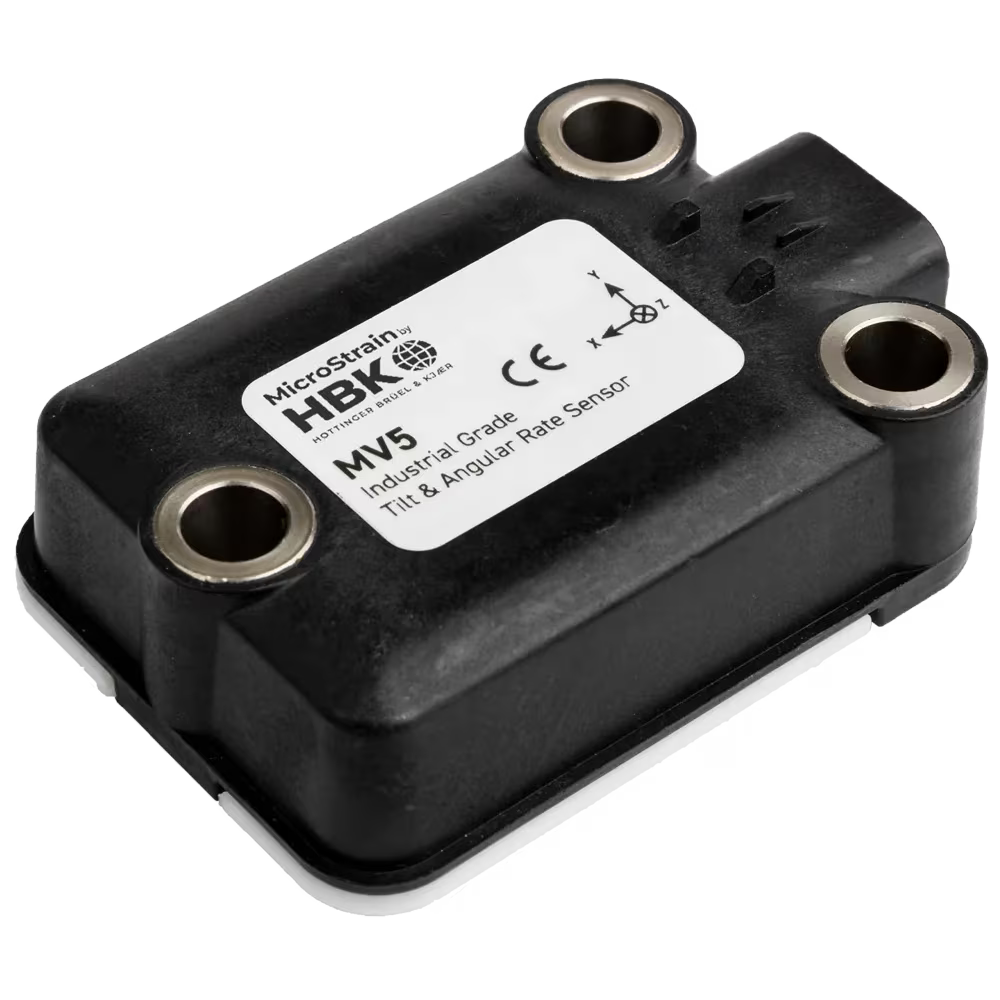

MV5-AR
By MicroStrain by HBK
• High performance accelerometer
• 85 µg/√Hz
• ±20 g range
• High performance Gyroscope
• 1000°/S
• Attitude accuracy ±0.2°
• Attitude resolution 0.05°
• Fully calibrated and temperature compensated –40 to +85°C
• Adjustable sampling rates up to 500Hz (100Hz default)
• Triple power flexibility:
• 5V regulated
• 12V unregulated vehicle bus
• 24V unregulated vehicle bus
• Single CAN command adjusts for any mounting orientation
• Fully compliant to strict automotive and off-highway test standards
Description
-
MV5-AR
The MV5-AR is an industrial grade IMU/tilt sensor that brings a new level of precision to measurements of dynamic inclination, acceleration and angular rate in challenging environments such as those encountered by heavy-duty construction, off-highway, agriculture, and trucking industries.
The MV5-AR utilizes the power of a sophisticated Auto-Adaptive Extended Kalman Filter (EKF) to remove errors associated with vibration, sudden linear motions, and quake, resulting in a true reading of inclination under all conditions.
Its power and mounting flexibility make it a single-part solution for a variety of vehicle applications.
-
Specifications
MV5-AR Performance Grade Industrial Grade Features Accelerometer, Gyroscope Random Walk Accel: 100 µg/√Hz, Gyro: 0.45 °/√hr Bias Instability (Gyroscope) 8 °/hr Bias Instability (Accelerometer) 80 μg Hysteresis Accel bias: 4.8 mg, Accel gain: 300 PPM, Gyro bias: 0.12 °/s, Gyro gain: 300 PPM Communication Port Type AMPSEAL 16 gold plated 4 pin Communication Interface CANopen Update Rate IMU: 500Hz, EKF: 500Hz Weight 110.5 g Size 78.9 mm x 55 mm x 23.5 mm Power Consumption 0.625 W Input Voltage 4.5 V to 36 V, 12/24 Nominal Minimum Operating Temperature -40 °C Maximum Operating Temperature 85 °C MTBF 826440 h Sensing Range (Accelerometer) 20 g Sensing Range (Gyroscope) 1000 °/s Accuracy Roll/Pitch (static): 0.25 ° Ingress Protection Rating IP68, IP69K Housing Material Fiber-Reinforced PBT Mounting Style Screw Down
