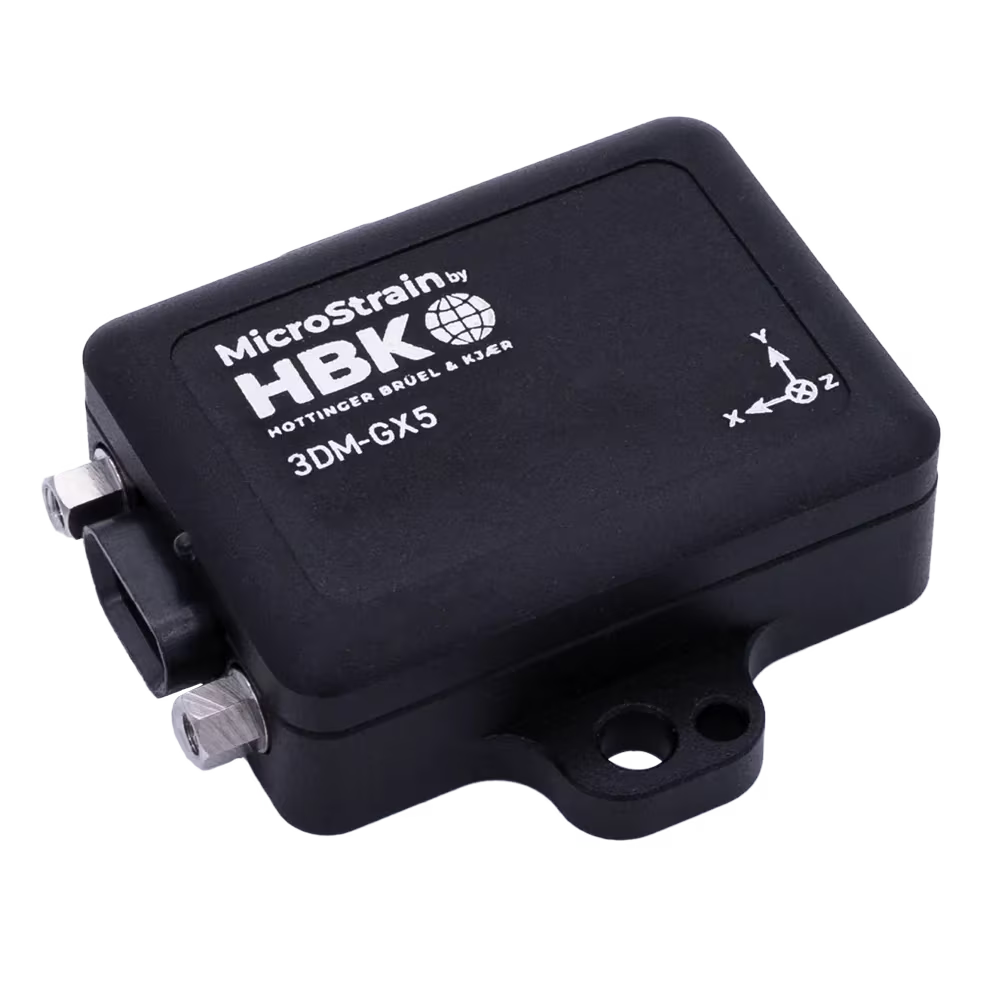

3DM-GX5-IMU
By MicroStrain by HBK
• High Performance Accelerometer
• 25 µg/√Hz (8g option)
• 80 µg/√Hz (20g option)
• Super-stable Gyro
• 8 dph in-run bias (-40 to +85°C)
Offset temperature hysteresis 0.05°/s
ARW 0.3°/√hr
• Adjustable sampling rates up to 1000Hz
• Configurable IMU outputs
• Forward compatible MIP Protocol optimizes bandwidth
• SensorConnect software for configuration, control, display, and logging
Description
-
3DM-GX5-IMU
The MicroStrain 3DM-GX5 family of high performance, industrial-grade inertial sensors provides a wide range of
triaxial inertial measurements, computed attitude, and navigation solutions.
In all models, the Inertial Measurement Unit (IMU) includes direct measurement of acceleration and angular rate, and
is fully temperature-compensated and calibrated over the operating temperature. The use of Micro-Electro-Mechanical
System (MEMS) technology allows for highly accurate, small, lightweight devices.
SensorConnect software is a user friendly program for device configuration. MIP Monitor (MicroStrain Internet
Protocol) can also be used. Both packages provide for device configuration, live data monitoring, and recording.
Alternatively, the MIP Data Communications Protocol is available for development of custom interfaces and easy
OEM integration.
The sensor operates independent of computer platform, operating system, or coding language. -
