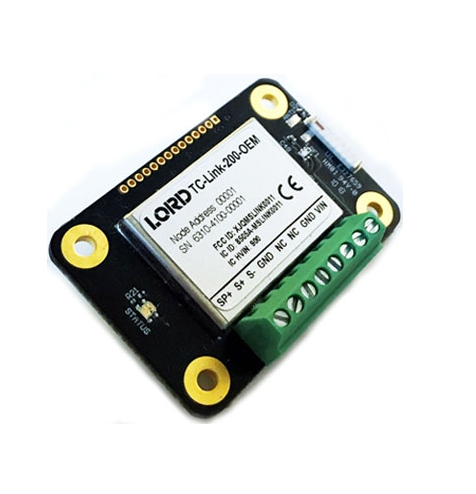

TC-Link 200 OEM, Wireless Temperature Sensor Node

By LORD Microstrain

• 1 input channel supporting Thermocouples, Resistance Thermometers and Thermistors
• On-board linearization algorithms supporting a wide range of temperature transducers
• Up to 128 Hz sampling
• High resolution 24-bit data
• Digital filtering for up to 120 db rejection of 50 and 60 Hz noise
• Wireless range up to 1km (400 m)
• Supply power from 3.3 to 30 V
• Continuous, periodic burst, and event-triggered sampling
• LXRS protocol allows lossless data collection, scalable networks and node synchronization of ±50 µs

Send me a qoutation

Description

  • General information

    The TC-Link®-200-OEM allows users to collect data from a range of sensor types including Thermocouples, Resistance Thermometers, and Thermistors. The node supports high resolution, low noise data collection from 1 temperature transducer at sample rates up to 128 Hz. Users can easily program nodes for continuous, periodic burst, or event-triggered sampling with the SensorConnect software. The optional web-based SensorCloud® interface optimizes data aggregation, analysis, presentation, and alerts for sensor data from remote networks.

  • Specifications

    General

    Sensor input channels

    Thermocouple, RTD, or Thermistor input, 1 channel

    Integrated sensors

    Temperature CJC, 1 channel
    Digital filter Adjustable low pass filter with 3db frequency as low as 2.3 Hz and up to 120 db 50/60 Hz rejection

    Thermocouple Input

    Measurement range -210° C to 1820° C (depending on thermocouple type)
    Accuracy ±0.5° C (20 to 70° C node temperature)
    ±1° C (-40 to 85° C node temperature)
    Resolution 0.1° C
    Compatible types J, K, N, R, S, T, E and B

    RTD Input

    Measurement range -200° C to 850° C
    Accuracy ±0.5° C (depending on RTD accuracy)
    Resolution 0.01 ° C
    Compatible types PT-10, PT-50, PT-100, PT-200, PT-500, PT-1000

    Thermistor Input

    Measurement range -40° C to 150 °C (depending on Thermistor type)
    Accuracy ±0.2° C (depending on Thermistor accuracy)
    Resolution 0.02° C
    Compatible types 44004, 44033, 44005, 44030, 44006, 44031, 44007, 44034, 44008, 44032, YSI-400

    Integrated Temperature Cold Junction Compensation (CJC) Channel

    Compensation range -40 °C to 85 °C (0 °C to 85 °C for type B
    Thermocouples)
    Accuracy ±0.13 °C (20 °C to 70 °C), ±0.25 °C (-40 °C to 85 °C)
    Resolution 0.02 °C

    Sampling

    Sampling modes Continuous, periodic burst, event triggered
    Output options Temperature, mV, Resistance or custom
    Sampling rates 1 channel: up to 128 Hz
    Sample rate stability ±5 ppm
    Network capacity Up to 128 nodes per RF channel (bandwidth calculator:)www.microstrain.com/configure-your-system
    Node synchronization ±50 µsec
    Data storage capacity 16 M Bytes (up to 8,000,000 data points)

    Operating Parameters

    Wireless communication range Outdoor/line-of-sight: 2 km (ideal), 800 m (typical)Onboard antenna: 1 km (ideal), 400 (typical) Indoor/obstructions: 50 m (typical)
    Radio frequency (RF)
    transceiver carrier
    License-free 2.405 to 2.480 GHz (16 channels)
    RF transmit power User-set 0 dBm to 20 dBm. restricted regionally
    Operating temperature -40 °C to +105 °C
    ESD 4 kV

    Physical Specifications

    Dimensions 41.3 mm  x  29 mm  x  5.9 mm
    Interface Solder or screw-down terminal available
    Weight 7 grams

    Integration

    Compatible gateways All WSDA gateways
    Software SensorCloud®, SensorConnect, Windows 7, 8 & 10 compatible
    Software development kit http://www.microstrain.com/software/mscl
    Regulatory compliance FCC (USA), IC (Canada), CE (European Union), JET (Japan)
