Products / Displacement Sensors / Linear Sensor

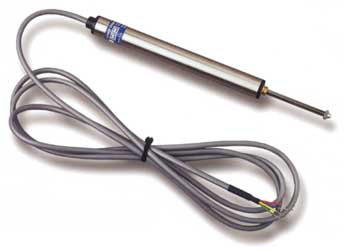

Model LDS

By Micro-Measurements (Vishay)

• Ranges from 5 mm to 100 mm
• Low operating forces
• Excellent Accuracy
• IP54 Protection
• 3 years Warranty

Send me a qoutation

Description

  • Model LDS

    The MM displacement transducer uses strain gauge technology to provide a linearly proportional voltage output in relation to movement. The compact size and rugged construction makes them ideal for use in a diverse range of applications such as Geotechnical Testing, R&D, Aerospace, Civil Engineering and Automotive.

    The strain gauge displacement transducer offers excellent accuracy of better than 0.1% on ranges 0-25mm and 0.2% on the 050mm and 0-100mm versions, with infinite resolution and long-term stability.

    The design incorporates a 4-arm active Wheatstone bridge with a nominal impedance of 350 ohms. This concept ensures excellent linearity, good temperature stability and low current consumption which is ideal for use in batterypowered systems and equipment.

    As a strain gauge based device, they are compatible with a broad range of standard analogue and digital instrumentation as used on load cells, pressure transducers and torque sensors.



  • Characteristics

  • Ranges

  • Connections
